Note this is only supplemental. Please refer to the supplied instruction manual for detail. If you have any technical questions please call us at (562) 777-1522 or email sales@roadraceengineering.com
LCD screen to monitor boost pressure at real time.
Control boost up to 300kPA (43.5psi) (This may vary on different turbo system)
There are 2 preset settings that can be selected by a single switch.
The response and the consistency of the boost can be adjusted by using the GAIN, START BOOST setting.
A built in warning feature will alert the driver when the boost exceeds the set boost pressure with an alarm and a message in the display.
When the warning feature is activated, the LIMITER feature can lower the boost to a safe pressure.
PEAK boost feature will allow the user to check the highest boost recorded.
The optional Remote Switching system can be used to select the HI/LO boost mode. (Sold separately)

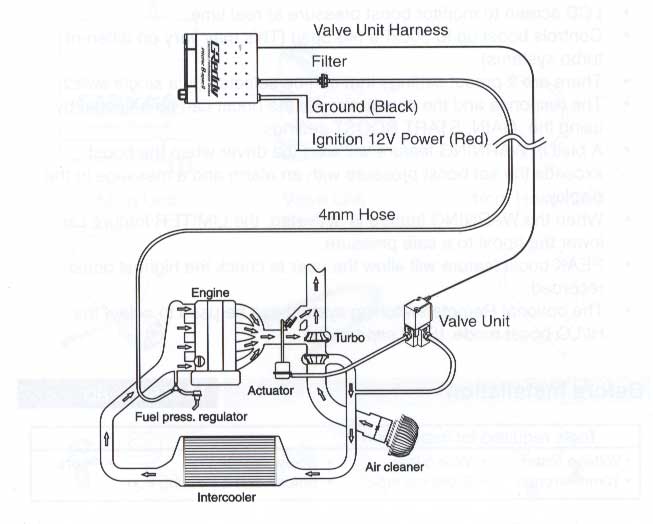

Cut the vacuum line on the fuel pressure regulator and install the supplied three way-fitting.
Install the supplied 4mm hose to the three way-fitting and route the hose in.
Hose should go to the back of the control box on the PRofec-B Spec II. Not the Valve Unit.
Please make sure that the 4mm hose is secured with zip ties after the installation to prevent them from disconnecting.
Mitsubishi have fuel pressure controlling solenoid valves. Make sure to get the pressure from the line between the intake manifold and the solenoid.
When routing the 4mm hose through the firewall, make sure not to kink this hose. Kinked hose will cause the unit not to function properly.
