1995 Mitsubishi Eclipse GSX

Driver/Owner: Roy Narvaez

Street Class Drag Car

Back to Customer cars

Click to view larger image


























History:

Car was purchased in early '99 as a daily driven fun car.

Was left stock for only a few months before Roy started to modify it.  With basic bolt-ons and a big 16g turbo Roy was able to run 12.7 @ 115 mph on street tires. This was full interior daily driven and his only car.

Tragically Roy fell victim to crankwalk.  He decided to go with a bullet proof motor.  4G63 motor form a early 1st generation turbo Eclipse. Also added was a 20g turbo.  First time at the track with this set-up he was able to knock down 12.1 @ 115 mph with basically no tunning.  Later with the same set-up he laid down 11.81 @ 121 mph.  With stock ecu, full interior, and was still his daily driven car.

In late 2001,  Roy managed to damage the motor and decided take a huge step into modifying his car to a street driven/drag racing car that most people dream of.  All his hard working money, countless hours and one year of preparation with the help of all his sponsors, family, and friends he made his dream come true.  Many people doubted him, and no matter what he was told he proved them wrong.

2003 finally saw the car back into action at the Sport Compact Cars Ultimate Street Car Challenge. Roy spent a great deal of time readying the car for road racing and handling events. With a well setup Mueller JIC suspension package, the car got 2nd overall. Mueller the wild man drove the car to a first place finish in the road course section.

Now... in 2004.  It's final ready.  We wish him good luck in the 2004 season.

Car:
1995 Mitsubishi Eclipse GSX

Modifications:

  • Engine
  • RRS Full Race Prepped Head
  • 6 bolt block
  • Knife-Edged and Lighten Crank
  • Eagle  Rods
  • JE High Compression Pistons
  • Kibble White Dual Valve Springs
  • Titianum Retainers
  • 1mm SS Oversized Valves
  • ARP Fasteners
  • TURBONETICS Ball Bearing Race Turbo
  • TURBONETICS Exhaust Manifold
  • TiAL 35mm HP External Wastegate
  • AEM Adjustable Cam Gears
  • HKS Racing Cams
  • SCE Copper Head Gasket



  •   Intake
  • GT Fabrication Sheet Metal Intake Manifold

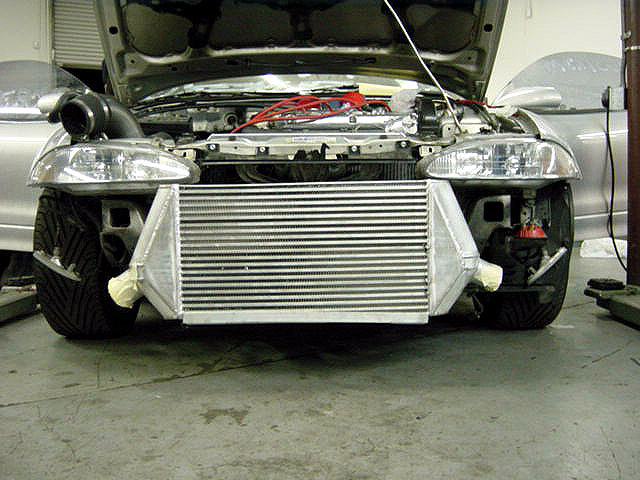

  • SPEARCO intercooler
  • GT Fabrications Custom End Tanks
  • AccuFab 75mm  Throttle body
  • TiAL Blow-Off Valve
  • GReddy Type-S BOV
  • 2.5" and 3" Aluminum I/C piping



  •   Exhaust
  • GT Fabrications Custom Exhaust system
  • Magnaflow Race Muffler
  • GT Fabrication Side Dump Tube



  • Fuel System
  • Custom SS Fuel Lines
  • Holley Fuel Rail
  • SX Adjustable Fuel Pressure Regulator
  • K&N Fuel Filters
  • SX  Fuel Pump
  • Holley Fuel Injectors

  • Chassis/Safety
  • 6 point Chromoly Roll Cage
  • Prothane Full Motor Mounts
  • RRE Bars
  • GT Fabrications Driveshaft Hoop
  • GT Fabrications Scatter-shield
  • RCI 5point Safety Harness



  • Drivetrain
  • RRE Welded Center Differential
  • ACT 2600
  • Single Piece Carbon Fiber Driveshaft
  • Aluminum Flywheel
  • B&M Short Shifter

  • Suspension
  • JIC coilovers
  • Custom Mueller front upper control arms



  • Brakes
  • Stoptech big brake kit



  • Engine Management and Gauges
  • AEM EMS Standalone Engine Management
  • GReddy Peak and Hold 60mm EGT gauge
  • GReddy Peak and Hold 60mm Boost gauge
  •  B&M Fuel Pressure Gauge



  • Ignition
  • MSD DIS-2 Digital Ignition Amplifier
  • 10mm Magnecor Spark Plug Wires
  • MSD Individual Coil Packs
  • NGK Spark Plugs



  • Extras
  • Fluidyne Aluminum Radiator
  • Spal Radiator Fans
  • RRE Catch Can
  • GReddy Profec-B Boost Controller
  • Apex'i Turbo Timer
  • Silicone Hoses
  • Custom Hood Vent
  • Relocated Battery in a Moroso Battery Box
