Intake Flanges
and Gaskets
|
 |
1G BOV Flange (Steel)
Laser cut steel, bolt holes drilled. 1 1/2" hole in center
Free stubby piece of 1 1/2" pipe with the right attitude ;-) You
gotta ask for it. |
FLAN-STL-1GBOV |
$10 |
 |
1G BOV Flange Gasket |
GASK-1GBOV |
$4 |
|
|
|
|
|
 |
Throttle Body Flange Steel
Laser cut steel, Bolt holes drilled. 2 3/8" hole (1G size). Bolt
pattern is the same as a 2G TB also. |
FLAN-STL-1GTB |
$16 |
 |

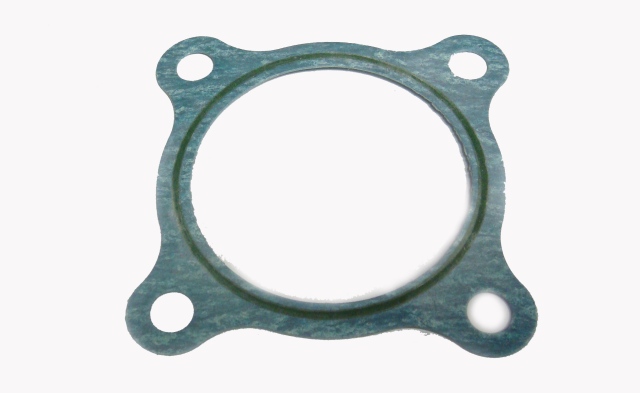

Throttle Body Flange Gasket |
GASK-1GTB |
$4 |
Exhaust Flanges
and Gaskets
|
| |
|
|
|
 |
V6 Exhaust Manifold Flange Steel
1/2" thick stainless steel. All holes drilled. Port size is
correct to match a slightly ported exhaust port. Fits 3G GT and 4G
GT |
FLAN-STL-V6 |
$30 |
|
|
4G69 Exhaust Manifold Flange
Fits the 4G69 2.4 MIVEC motor. |
FLAN-STL-4G69EXMAN |
$35 |
|
|
|
|
|
 |
Eclipse Turbine Outlet Flange 304 Stainless Steel
1/2" thick Laser cut Stainless Steel. Has a larger than stock outlet
hole for the turbo air. The wastegate outlet hole is 1 3/4"
Dimensions |
FLAN-SS-ECLTURBOUT |
$35 |
 |
EVO 3 O2 Housing Inlet 304 Stainless Steel Gasket
This larger SS gasket is a perfect match for the EVO3 O2 sensor
housing. Also works well with 7cm turbine housings that have been
bored out to fit TDO-6 exhaust wheels and extremely ported turbine
outlets. Turbine outlet hole is 2.5"
Dimensions |
GASK-O2IN-EVO3 |
$13 |
 |
EVO 8/9 Down Pipe Flange
Stamped SS flange for the pivoting socket donut style gasket
fitting found on the EVO 8/9 down pipe.
Second Pic Dimensions |
FLAN-SS-DP-EVO89 |
$25 |
 |
Eclipse Turbine Inlet Flange Steel
1/2" thick steel, laser cut to match the 7cm gasket size. Use
it for making a manifold using an Eclipse style turbo. |
FLAN-STL-ECLTURBIN |
$18 |
 |
Eclipse Turbine Inlet Flange 304 Stainless Steel
1/2" thick stainless steel, laser cut to match the 7cm gasket
size. Use it for making a manifold using an Eclipse style
turbo. |
FLAN-SS-ECLTURBIN |
$24 |
 |
7cm EclipseTurbine Housing 304 Stainless Steel Gasket
Thick stainless steel gasket with thicker sides are less prone to
cracking. Sized to fit the 7cm exhaust housing.
10 pack for $140 |
GASK-SS-7CMTURB |
$22 |
 |
Factory 7cm Turbine Housing Gasket
Multi-Layer factory gasket for the 7cm DSM exhaust housings.
Recommended to use with a factory sealing ring. |
GASK-FACT-7CMTURB |
$22 |
|
|
EVO 8/9 Turbine Inlet Gasket
Factory Gasket for the EVO 8/9 |
GASK-TURBIN-EVO89 |
$40 |
 |
Stock Sized DP Flange Steel
Steel, bolts to O2 sensor housing, 1/2" thick steel. Also fits the
stock cat. |
FLAN-STL-DPSTOCK |
$12 |
 |
Stock Sized DP Flange 304 Stainless Steel
Stainless Steel, bolts to O2 sensor housing, 1/2" thick Stainless
Steel. Also fits the stock cat. |
FLAN-SS-DPSTOCK |
$20 |
 |
2 1/2" Exhaust Gasket
Metal / composite factory type, fits ported O2 housing outlets,
stock cat too. |
GASK-EXH250 |
$ 8 |
 |
EVO3 DP Flange Steel
This larger DP flange allows you to build a DP to fit the newly
available larger EVO3 O2 sensor housings. 1/2" thick laser cut
steel, center hole is 2.5" diameter. Bolt spacing is 4" Allows a 3"
pipe to be welded directly to the flange. |
FLAN-STL-DPEVO3 |
$12 |
 |
EVO3 DP Gasket
Metal / composite factory type. |
GASK-DPEVO3 |
$10 |
 |
2 1/4" Universal Exhaust Flange
Works best when bolting to a stock DP or stock cat. The inside
diameter is 2.25 " which is actually the same inside diameter of a
2.5" OD pipe. The little extra thickness on the lip helps match and
seal the smaller stock flanges. Bolt
pattern is from 3 1/2" to 4 5/16" |
FLAN-STL-225U |
$8 |
|
|
2 1/2" Universal Exhaust Flange
Universal 2 bolt pattern, 5/16" thick steel. Center hole is 2.5"
Bolt pattern is from 3 1/2" to 4 5/16" |
FLAN-STL-250U |
$ 8 |
 |
3" 2 Bolt Exhaust Flange Steel
2 bolt pattern at 4 3/16" spacing (matches RSR and Apex)
1/2" Thick steel, laser cut. |
FLAN-STL-3IN2BLT |
$15 |
 |
3" 2 Bolt Exhaust Flange 304 Stainless Steel
2 bolt pattern at 4 3/16" spacing (matches RSR and Apex)
1/2" Thick stainless steel, laser cut. |
FLAN-SS-3IN2BLT |
$20 |
 |

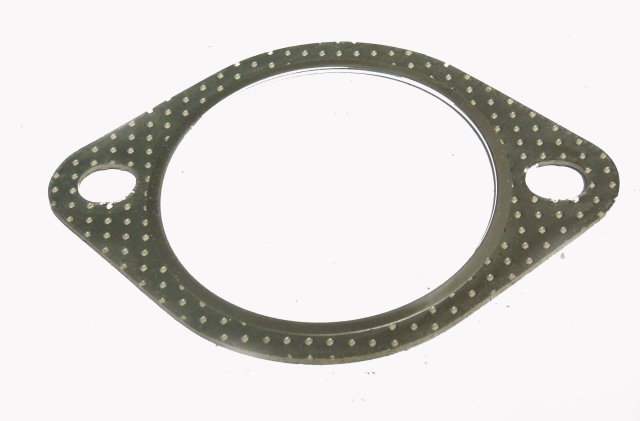

3" 2 Bolt Exhaust Gasket
2 bolt pattern at 4 3/16" spacing (matches RSR and Apex)
Metal/composite factory type. |
GASK-3IN2BLT |
$10 |
 |
2 1/2" 3 Bolt Flange
3/8" thick stamped steel, 3 bolt pattern |
FLAN-250-3BLT |
$8 |
 |
3" 3 Bolt Exhaust Flange (thick)
3/8" thick laser cut steel, 3 bolt pattern |
FLAN-STL-3IN3BLT |
$ 12 |
 |
3" 3 Bolt Exhaust Flange Gasket
Composite fiber type |
GASK-3IN3BLT |
$ 4 |
 |
3G Eclipse Pre-Cat Flange
Flange that goes between the stock cast exhaust Manifold and the
pre-cat on a 2000-2005 Eclipse GT 6 cyl |
FLAN-STL-3GPRECAT |
$10 |
 |
EVO 8/9 and 4G GT Rear Exhaust Flange
3 bolt flange for building an axle back muffler on either an EVO 8/9
or the 4G Eclipse GT |
FLAN-STL-3BLTREAR |
$12 |
|
|
|
|
|
Garrett Turbo Parts
|
 |
TiAL 35/38mm Flange
/Delta Gate Waste Gate Flange - Steel1/2" Thick |
FLAN-STL-38MM |
$10 |
 |
TiAL 35/38mm Flange
/Delta Gate Waste Gate Flange - Stainless steel1/2" Thick |
FLAN-SS-38MM |
$16 |
 |
TiAL 38mm Gasket 304 Stainless Steel Laser Cut
Also fits the older TiAL 35mm and The Turbonetics Deltagate. This
thicker laser cut gasket will work really well if your surfaces are freshly
machined flat |
GASK-38MM-LASR |
$8 |
 |
Compare the three 38mm gaskets If you
are constantly blowing out gaskets more than likely your flanges are
warped. But if one type is dying, sure, try another. Just be sure
everything is flat! |
 |
Garrett Oil Drain Flange with 5/8" hose barb
fitting |
FLAN-ALU-T3DRAIN |
$18 |
 |
Garrett Oil Drain Gasket |
GASK-T3DRAIN |
$ 4 |
 |
Garrett T-3 Turbine Housing Inlet Flange Steel
1/2" thick steel |
FLAN-STL-T3TURBIN |
$18 |
 |
Garrett T-3 Turbine Housing Inlet Flange
Stainless Steel
1/2" thick stainless steel |
FLAN-SS-T3TURBIN |
$28 |
 |
Garrett T-3 Turbine Housing Inlet Gasket
Single layer stainless steel |
GASK-T3TURBIN |
$ 8 |
 |
Garrett T-3 Turbine Housing Discharge Flange
Laser cut, 1/2" thick steel, holes drilled.
Dimensions |
FLAN-STL-T3TURBDIS |
$25 |
 |
Garrett 5 Bolt T-3 Turbine Housing Discharge Gasket
Made of 304 Stainless steel
Dimensions |
GASK-T3TURBDIS |
$15 |
 |
Garrett 4 bolt T-3 Turbine Housing Discharge Gasket
Used on _MOST_ ball bearing T-3 Turbine Housings. Made of 304
Stainless steel |
GASK-T34BOLT |
$15 |
|
|
